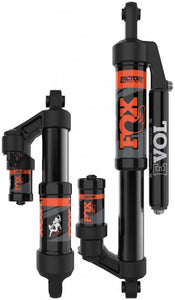

Burandt Signature Series Fox Float 3 EVOL QS Matryx PRO RMK Front & Rear Track Shock - 853-21-250
PR-RT-853-21-250Condition: New Aftermarket - Fox Racing
OEM Part #: 853-21-250
New for the 2022-2023 PRO RMK Matryx Platform
CONTACT US WHEN MARKED AS SOLD FOR A DELIVERY ETA
The Burandt Series, FLOAT 3 EVOL Quick Switch (QS) is the lightest mountain sled suspension package. These shocks are tuned specifically to suit Chris Burandt’s riding style. Ride harder in the backcountry with less fatigue without a compromise of durability. Experience a new sense of control on the snow due to less outboard weight.
We designed the air-sprung mountain shocks with two primary objectives: weight reduction and ride performance. FOX optimizes the FLOAT 3 EVOL QS shocks through material reduction without a sacrifice of ride quality or structural integrity. We shaved weight from the reservoir walls and mounting hardware to save weight where it counts. The result is an air shock package in a league of its own.
FOX’s position-sensitive damping technology, with origins in desert truck racing, is now applied to the Burandt Series coil-sprung shocks. Spiral grooves inside the shock allow the oil to flow around the main piston reducing damping force in the ride zone for a plush feel. The bypass grooves terminate through the final 30% of the travel, forcing oil to only flow through the main piston, and providing a significant increase of bottom-out resistance to cushion any hard hits. Our goal is to inspire confidence next time you send it big thanks to the extra support.
FOX’s QS technology allows you to adjust the compression and rebound damping with ease to suit the snow conditions. Three positions keep the adjustment simple, so you focus on the ride instead of counting clicks. The FLOAT air spring and EVOL air chamber have an infinite range of spring adjustment. The air spring allows you to tailor the suspension specifically to your ride style or terrain. When the shock compresses through the travel, the spring force ramps up due to the progressive nature of air springs. If you ride aggressively and want a bottomless feel, the FLOAT 3 EVOL QS shock package is for you.
Maximize the power-to-weight ratio of your sled by bolting on the new FOX Burandt Series shocks.
| Adjustments | FLOAT air spring (front and rear track) |
|---|---|
| EVOL air chamber (rear track) | |
| QS3 – 3 position compression (front track), with lockout mode (rear track) | |
| QSR – 3 position rebound (front track) | |
| Features | Burandt specific calibration |
| Optimized lightweight shock design | |
| Spiral groove bypass | |
| One-piece, aluminum spherical bearings | |
| High-flow velocity-sensitive damping | |
| Fully re-buildable and re-valvable | |
| Front Track Extended Length | 11.450 |
| Front Track Compressed Length | 8.190 |
| Front Track Travel | 3.260 |
| Rear Track Extended Length | 17.130 |
| Rear Track Compressed Length | 10.940 |
| Rear Track Travel | 5.570 |
| Air Spring Pressures | Front Track Main - 25psi Rear Track Main - 155psi EVOL - 170psi |
| Top Mount | Eyelet |
| Bottom Mount | Eyelet |
| Reservoir | Piggyback |
| Replaces Part Number | |
| Fitment notes | Track (Front & Rear) |
Fitment :
Polaris 850 PRO RMK Slash 155
Track (Front & Rear) 2023 Rear
Polaris 850 PRO RMK Slash 163 3in.
Track (Front & Rear) 2023 Rear
Polaris 850 PRO RMK Slash 165 2.75in.
Track (Front & Rear) 2023 Rear
Polaris 850 PRO-RMK 155
Track (Front & Rear) 2023 Rear
Polaris Patriot 9R PRO RMK Slash 155
Track (Front & Rear) 2023 Rear
Polaris Patriot 9R PRO RMK Slash 163 3in.
Track (Front & Rear) 2023 Rear
Polaris Patriot 9R PRO RMK Slash 165 2.75in.
Track (Front & Rear) 2023 Rear
Polaris Patriot Boost PRO RMK Slash 155
Track (Front & Rear) 2023 Rear
Polaris Patriot Boost PRO RMK Slash 163 3in.
Track (Front & Rear) 2023 Rear
Polaris Patriot Boost RMK Khaos Slash 165 2.75in
Track (Front & Rear) 2023 Rear
Polaris 850 PRO-RMK Matryx 155
Track (Front & Rear) 2022 Rear
Polaris 850 PRO-RMK Matryx Slash 155 2.75in.
Track (Front & Rear) 2022 Rear
Polaris 850 PRO-RMK Matryx Slash 155 3in.
Track (Front & Rear) 2022 Rear
Polaris 850 PRO-RMK Matryx Slash 163 3in.
Track (Front & Rear) 2022 Rear
Polaris 850 PRO-RMK Matryx Slash 165 2.75in.
Track (Front & Rear) 2022 Rear
Polaris Patriot Boost PRO-RMK Matryx Slash 163 3in.
Track (Front & Rear) 2022 Rear
Polaris Patriot Boost PRO-RMK Matryx Slash 165 2.75in.
Track (Front & Rear) 2022 Rear
