IceAge Polaris AXYS Chassis KHAOS PROFILE Rail Kit for 8" Wheel
59-079-11Condition: New Aftermarket IceAge Performance
OEM Part #: KHAOS PROFILE Axys Chassis
8" Wheels sold separately
Replacement slide rails for your Polaris Axys Pro RMK KHAOS 800 and 850 snowmobile suspension.
Factory Polaris 163/165" rails only have one cross shaft in the Rear Skid. Iceage utilizes & recommends two cross shafts In the rear of skid: Cross Shaft
IceAge Khaos rails feature an aggressive bend profile unique to the Khaos RMK. They have an increase bend radius designed to mimic the OEM Khaos rails. Our Khaos-style rails can be installed on any Axys or ProRide RMK sled, but you must use the your shorter stock length RMK limiter strap. Using khaos rails with a longer limiter strap and the RMK-length shock will result in damage to the Front Track Shock due to hyperextension.
Installing our Khaos rails by themselves on your Axys RMK will get your RMK around ~1/3 of the way to achieving the playful "Khaos feel"
For the full Khaos experience without sacrificing climbing and technical riding performance, check out our Chaos Conversion Kit
Designed and machined from 7000 series aluminum with special attention paid to cutout design and location to create a stronger, more durable rail package then OEM.

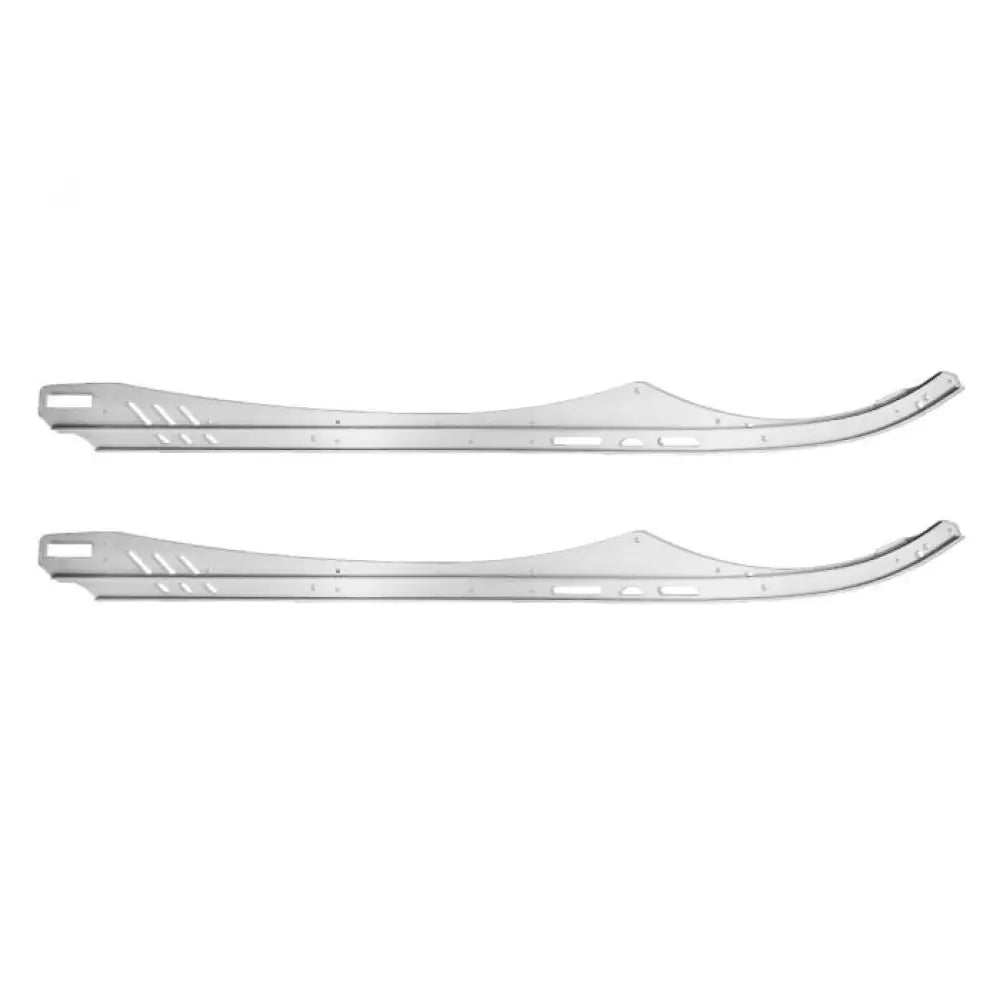

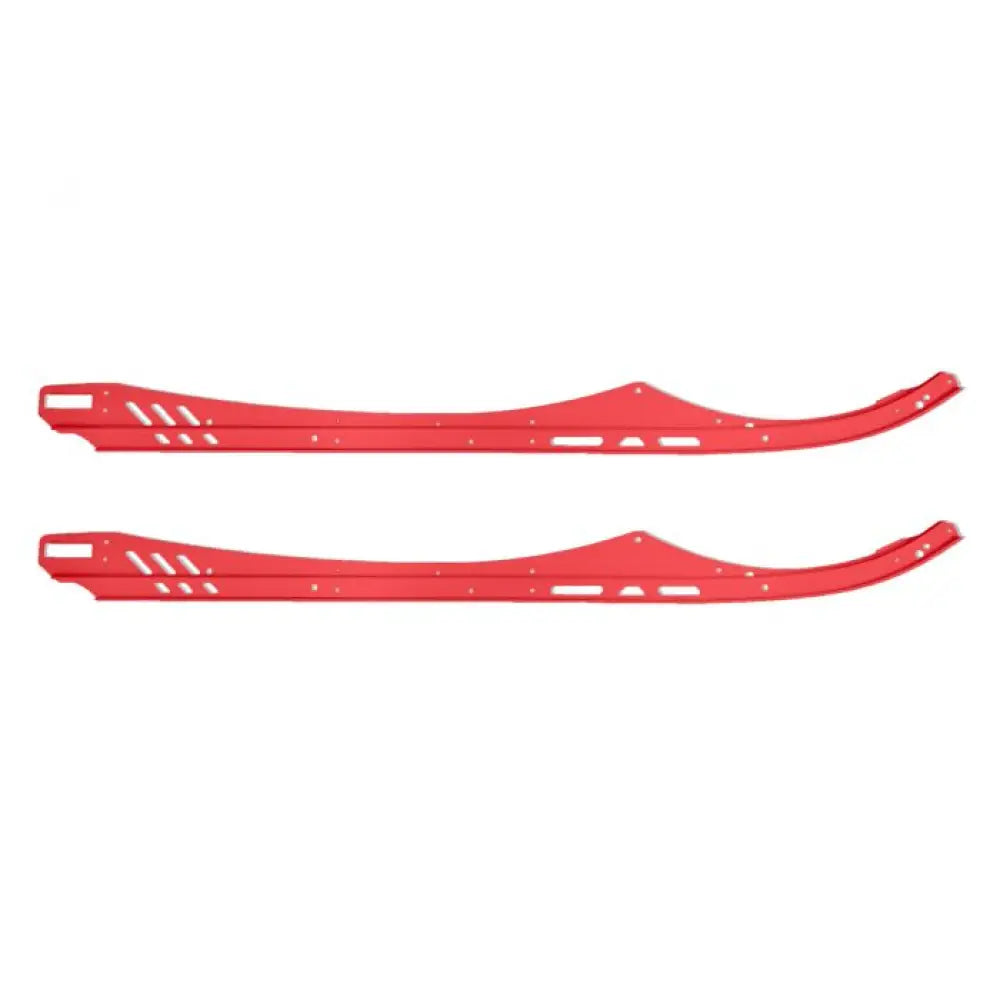

CLASSIC rails are even lighter than OEM rails while being superior in strength.

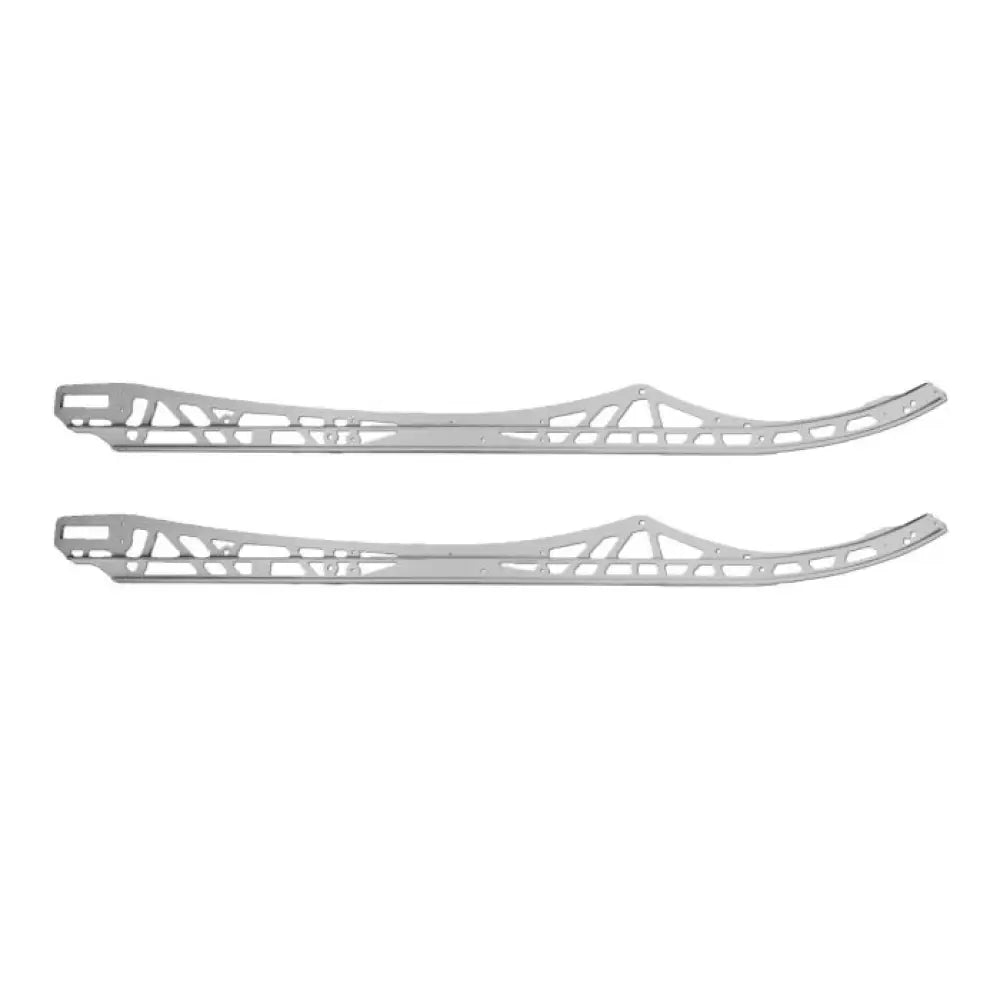

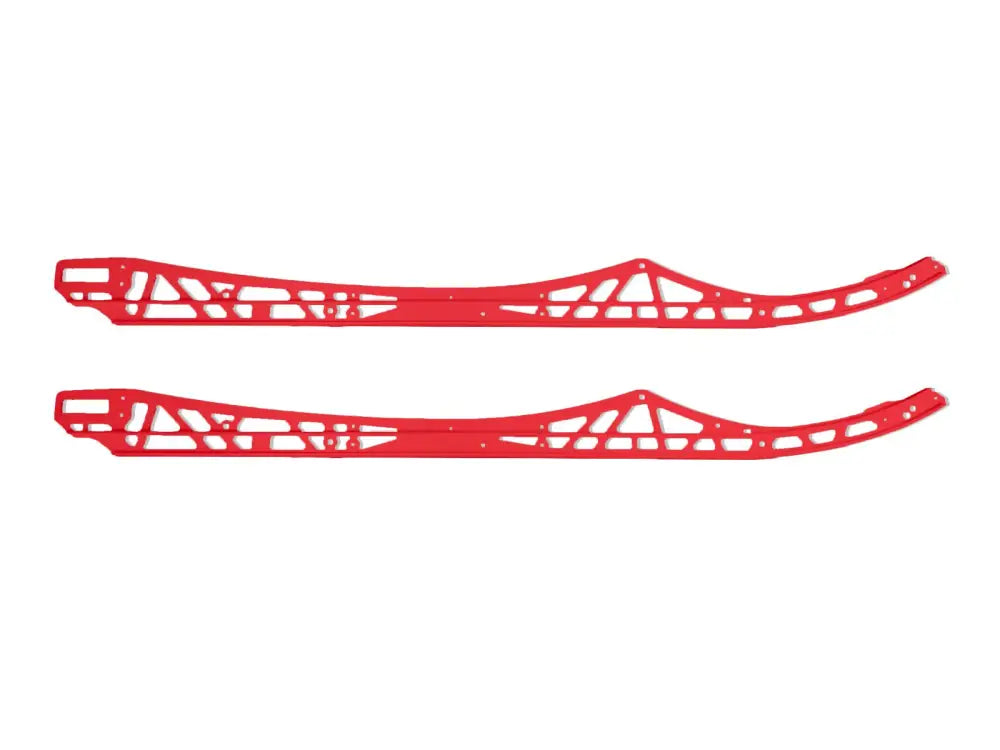

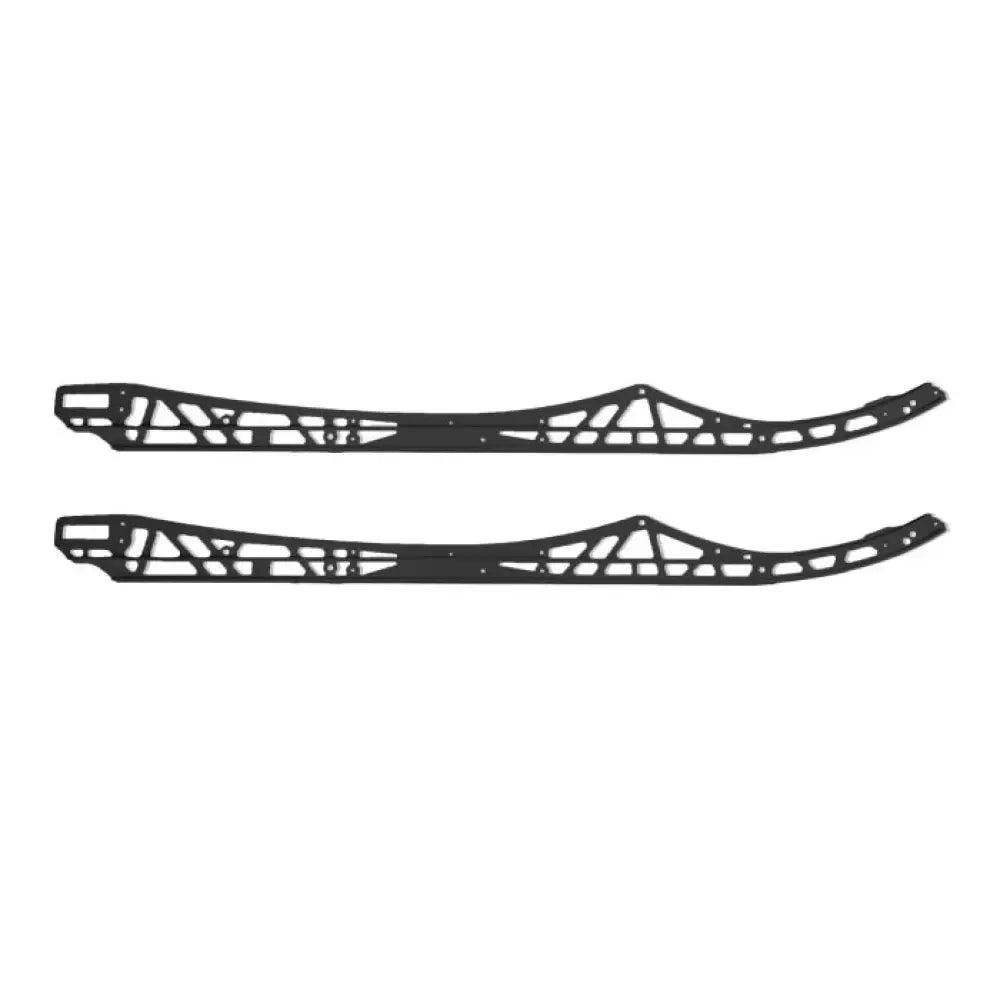

BOMBER rails have fewer cut outs to create a much stronger, more durable rail that can withstand substantial abuse in the backcountry.
We offer 146, 155, 163, and 165 variations. This allows you to shorten, lengthen or just beef up your existing skid length with the proven strength of IceAge Rails.
Kit includes:
- 2 rails
- 2 hi-fax
- 2 idler adjuster housings, bolts, and mounting hardware
- Iceage decal
***Note*** Rails are cut to accomodate 8" rear idler wheels. Stock Polaris wheels are 7 1/4". Appropriate wheels are required for proper fit and function. Do not run the stock wheels on rails configured for larger wheels, damage to your track/rails/wheels may occur!
144" tracks will fit on our 146" rail, as long as you use at 10 tooth or smaller driver.
Will Also fit on Matryx Chassis **(Except Models with the series 8 2.75" Track with factory anti-stab & extrovert drivers)**
CONTACT US WHEN MARKED AS SOLD FOR A DELIVERY ETA (Ordering Weekly)
