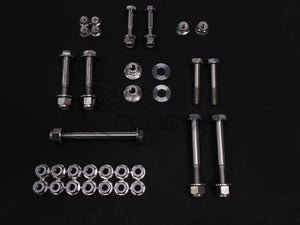

Polaris Axys / Matryx 40pc Front Suspension Titanium Bolt Kit
POAX-TI-FTSCondition: New Aftermarket - Carbon Sled X BWC Powersports
OEM Part #: POMX-TI-CHS
Pre-Orders, Expected to be ready by end of october
Our Titanium Bolt kit is the most complete offering in the industry. After purchase, you will receive detailed images and information on bolt placement.
- Upper Shock Bolt & Nylock Nut (x2)
- Lower Shock Bolt (x2)
- Sway Bar Link - A-arm Bolt & Nylock Nut (x2)
- Sway bar bushing M6 Nuts (x4)
- Upper Ball Joint Nylock Nut and Washer (x2)
- Lower Ball Joint/Spindle Bolt & Nylock Nut (x2)
- A-arm/Bulkhead Stud Nylock nuts ONLY (x14) - TI studs sold with chassis kit
- Front A-arm Pin through Bulkhead Bolt & Nylock Nut (x1)
40 PC TOTAL
Upgrade your Axys / Matryx with our 40pc Front Suspension Titanium Bolt Kit for lighter weight and superior strength. Our high-tensile bolts will not corrode and less prone to wear. Experience the benefits of titanium while maintaining a sleek and functional chassis.
Combination of forming and machining, these fasteners deliver superior strength and precision to meet our high standards.
Other bolt suppliers reduce head and flange sizes simply to save cost.
Our bolts have proper head and flange size to reduce any hole distortion
or striped head. This may add a gram or 2 but worth it!
INSTRUCTIONS
Thread lock is required on all fasteners. Titanium is an inactive metal so we highly
recommend using a thread lock primer. Our recommended brand is Loctite SF7649 primer with Loctite 262 or 242 thread lock.
TORQUE SPECS
M6 8Nm 6FT Lb.
M8 20Nm 15FT Lb.
M10 40Nm 30FT Lb.
*Loctite SF 7649 Primer Recommended for all Titanium or Anodized fasteners
